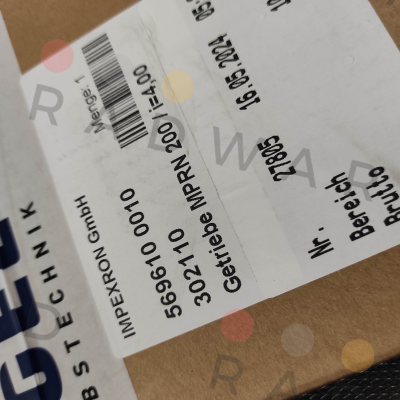

302110 / MPRN200 Vogel

Manufacturer	Vogel
Part number	302110 / MPRN200
Inner Code	4718646
Description	planetary gears
Custom code	84834029
Technical specification	Gearbox type MPRN Gearbox size 200 Translation i= 4.00 Mo flange external size VK160 Center diameter 130 Bolt circle Ø 165 4xM10 motor mount for motor shaft Ø 32 for motor shaft length 60 Lubrication type oil lubrication SHC 629 lubricant Texture synthetic Viscosity 150 with tensioning kit on the drive Quality/Game Twist game max. 3' Nitro-Cell transmission paint. -Comb. (150093) matt colour RAL9005/deep black
