Regloplas - P140S/8/SM22/SK/RT100
Please contact us to request a price quote for Regloplas - P140S/8/SM22/SK/RT100, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Technical information
| Manufacturer | Regloplas |
|---|---|
| Part number | P140S/8/SM22/SK/RT100 |
| Inner Code | 4057450 |
| Description | temperature device |

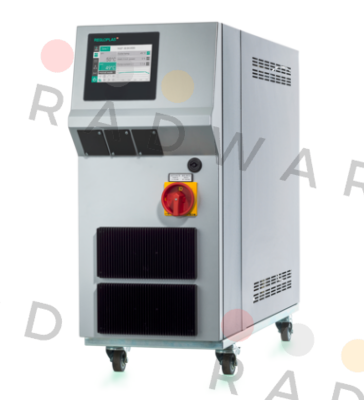

| Technical specification | Regloplas Model P140S/8/SM22/SK/RT100 Single Zone Temperature Control Unit for the thermal control of die cast dies, rubber and plastic molds, extruders, rollers, vessels and other consumers. Standard Features: o Indirect Cooling – advanced technology for facilities with marginal water conditions. o Automatic water refill – acoustic alarm and automatic fluid level control. o All components exposed to water are made of non-rusting materials. o Leak free centrifugal pump for lower maintenance and lower operating costs. o Solid State Relays o The 3.5” TFT display shows all active functions and has a selectable language program. Technical Data: o Outlet Temperature – Maximum 285° F. o Number of Independent Zones 1 o Heat Transfer Fluid Water o Filling Capacity of Unit .3 Gallons o Expansion/Reservoir Capacity – Maximum .0 Gallons o Heating Capacity 8kW o Cooling Capacity at Outlet Temperature – Maximum 32kW @ 265º F. o Pump Model / HP SM22 /.75 HP o Flow Rate – Maximum 10 GPM o Outlet Pressure – Maximum 80 PSI o Controller Model RT100 o Measuring Mode PT-100 o Solid State Relays Standard o Operating Voltage 480V/3/60 o Control Voltage 230V/1/60 o Power Requirements – Maximum 10 Amps @ 480V o Connections - Process Outlet/Inlet G ½” o Connections - Cooling Outlet/Inlet G ½” o Noise Level <70db o Dimensions (W/H/D) – Weight 9”/23”/32” -- 115 Lbs. |
