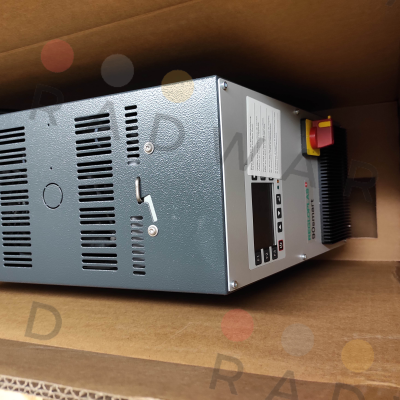

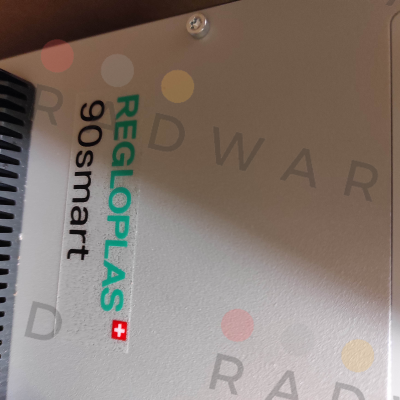

Regloplas - 90smart/9/TP20/1K-RT70
Please contact us to request a price quote for Regloplas - 90smart/9/TP20/1K-RT70, or for any other model as well. We offer competitive prices, fast delivery and a wide products distribution network in the UK.
WE SELL ONLY NEW AND ORIGINAL PRODUCTS!
Our company is not an authorized distributor. All rights are reserved by the manufacturers and their official partners.
Technical information
| Manufacturer | Regloplas |
|---|---|
| Part number | 90smart/9/TP20/1K-RT70 |
| Inner Code | 177242 |
| Description | Temperature control unit |
| Custom code | 84198998 |
| Technical specification | Regloplas Model 90smart Single Zone for the thermal control of plastic and rubber molds, die cast dies, extruders, rollers, vessels, and other consumers. Standard Features: o Heavy duty centrifugal pump o Indirect cooling - advanced technology for plants with marginal water conditions o Solid State Relays o Acoustic Alarm o Automatic water refilling o Automatic fluid level control o Automatic pump rotation correction o Leak-stop operation and drainage of the consumer o Non-ferrous components in water system o RT70 Controller with 3.5” TFT Display Technical Data: o Outlet Temperature – Maximum 195° F. o Number of Independent Zones 1 o Heat Transfer Fluid Water o Filling Capacity of Unit 1.75 Gallons o Expansion/Reservoir Capacity – Maximum .75 Gallon o Heating Capacity 9kW o Cooling Capacity at Outlet Temperature – Maximum 38kW @ 195° F. o Pump type / HP TP20 / .75 HP o Flow Rate – Maximum 16 GPM o Outlet Pressure – Maximum 55 PSI o Controller Model RT-70 o Relays Solid State o Measuring Mode PT-100 o Operating Voltage 480V/3/60 o Control Voltage 24VDC o Power Requirements – Maximum 12 Amps @ 480V o Connections - Process Outlet/Inlet G 1/2” o Connections - Cooling Outlet/Inlet G 1/2” o Noise Level <70db |
| Weight: | 1 |
